Artisan 143 Series Vinyl Windows

3.25"Frame depth

Sloped SillQuick water run-off

Tilt-In SashesEasy cleaning

Integral J-ChannelPatented design

Axis BalanceSmooth operation

Clear-ViewGlass packages

Premium Construction

Built like millwork. Performs like a fortress.

The Artisan 143 Series pairs a rich, exterior millwork frame design with fusion-welded construction, multi-chamber heavy-wall vinyl, and SunShield® technology formulated to withstand the harsh effects of weather and ultraviolet light. All windows are available with FlexScreens as an optional feature.

Fusion-welded sash and mainframe — superior strength, leak resistance, and structural integrity
Patented integral J-channel — a clean look that simplifies new-construction installation
Fin-Seal weather stripping — additional center membrane for increased resistance
Advanced constant-force balance system — long-lasting, smooth, dependable sash operation
Clear-View insulated glass system — reduces energy consumption year-round
Extra-wide integral nailing fin — inhibits water and air infiltration
Full-length extruded handle rail — easy sash operation
Optional jamb extensions — 4 9/16" and 6 9/16" configurations
Multiple colors & grid options — match your décor or create a whole new look

Colors WhiteTanCustom

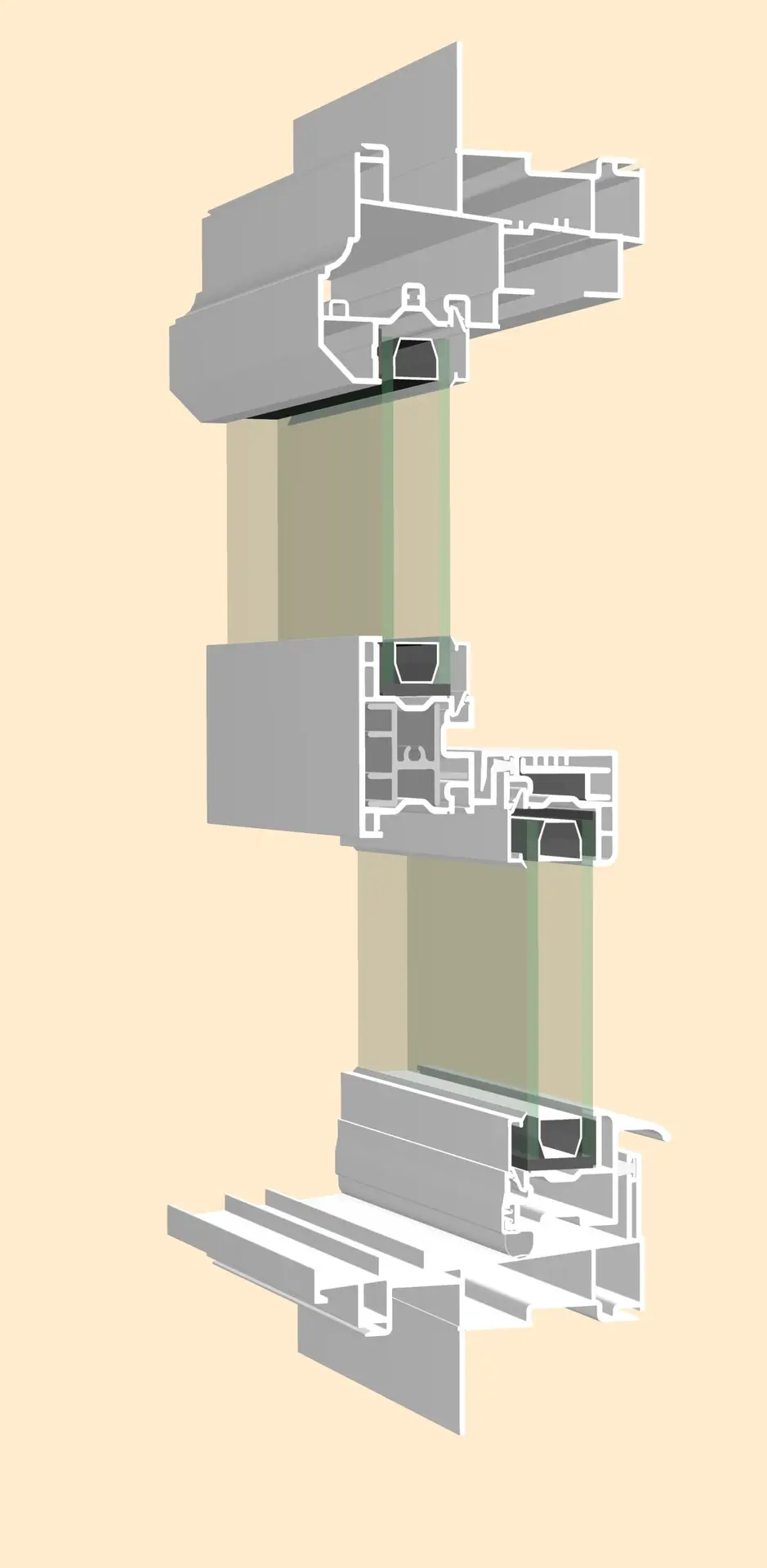

Artisan 143 Series single-hung cross-section showing frame construction

Available Styles

Six styles, one standard of craftsmanship

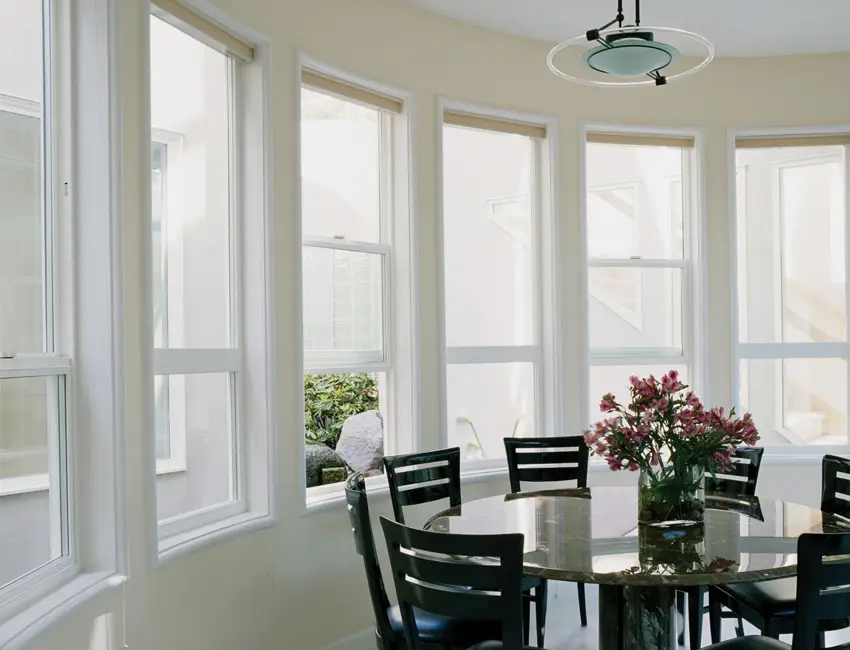

Single-Hung Windows

Opens by raising the bottom sash. A fixed meeting rail provides structural stability, and fewer moving parts make for easy installation.

Available for replacement and new construction
Fixed meeting rail for structural stability
Easy installation with fewer moving parts

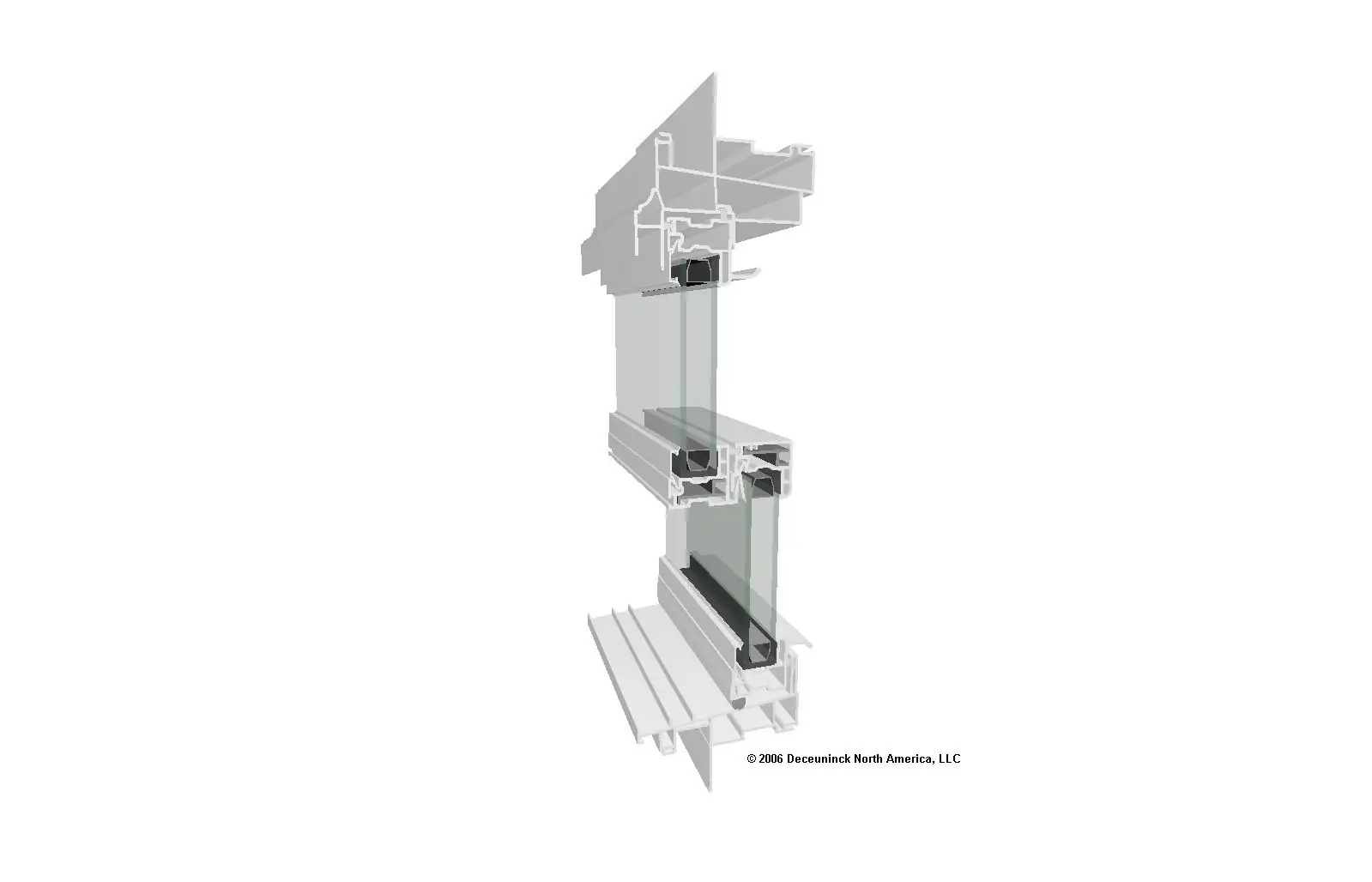

Double-Hung Windows

Opens by raising the bottom sash or lowering the top sash — ventilate from the top, bottom, or both.

Available for replacement and new construction
Ventilation from top or bottom of the window (or both)
Both sashes tilt in for easy cleaning from inside your home

Single & Double Sliding Windows

A traditional style that opens by sliding the sash toward the center. Single sliders can be built with the left or right sash operable; double sliders open from either side.

Available for replacement and new construction
Operable sashes glide on rollers
Double-slider sashes remove from inside the home for easy cleaning

“Panorama” Picture Windows & Custom Shapes

An unobstructed view of the outdoors and plenty of natural light — including custom shapes to match your home’s architecture.

Available for replacement and new construction
Unobstructed viewing area
Maximizes natural light

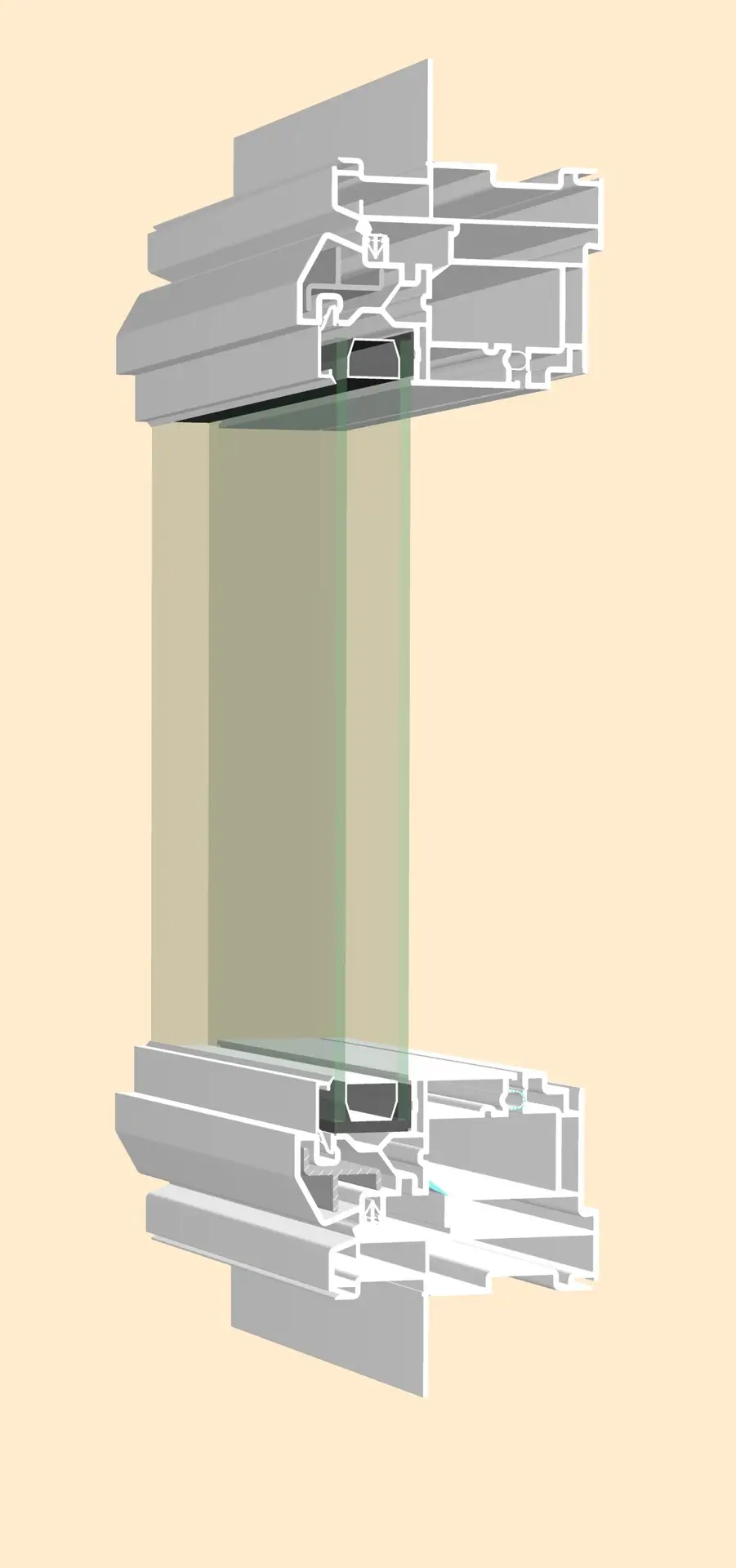

Artisan Panorama 143 casement cross-section

“Panorama” Casement & Awning Windows

Its own premium profile: a thick-wall, impact-capable 3¼" frame with our best thermal numbers — a U-factor range of .42–.19 — and UltraSeal engineering for maximum unobstructed views.

SafeGuard Locking System with fold-flat, corrosion-resistant casement locks
Quiet Edge crank handle system for a sleek, recessed look
Clear-View glass packages up to ENERGY STAR certified Platinum
Swing-out design makes cleaning simple

Documentation

Spec sheets & downloads

Full technical documentation for the Artisan 143 Series, by style.
